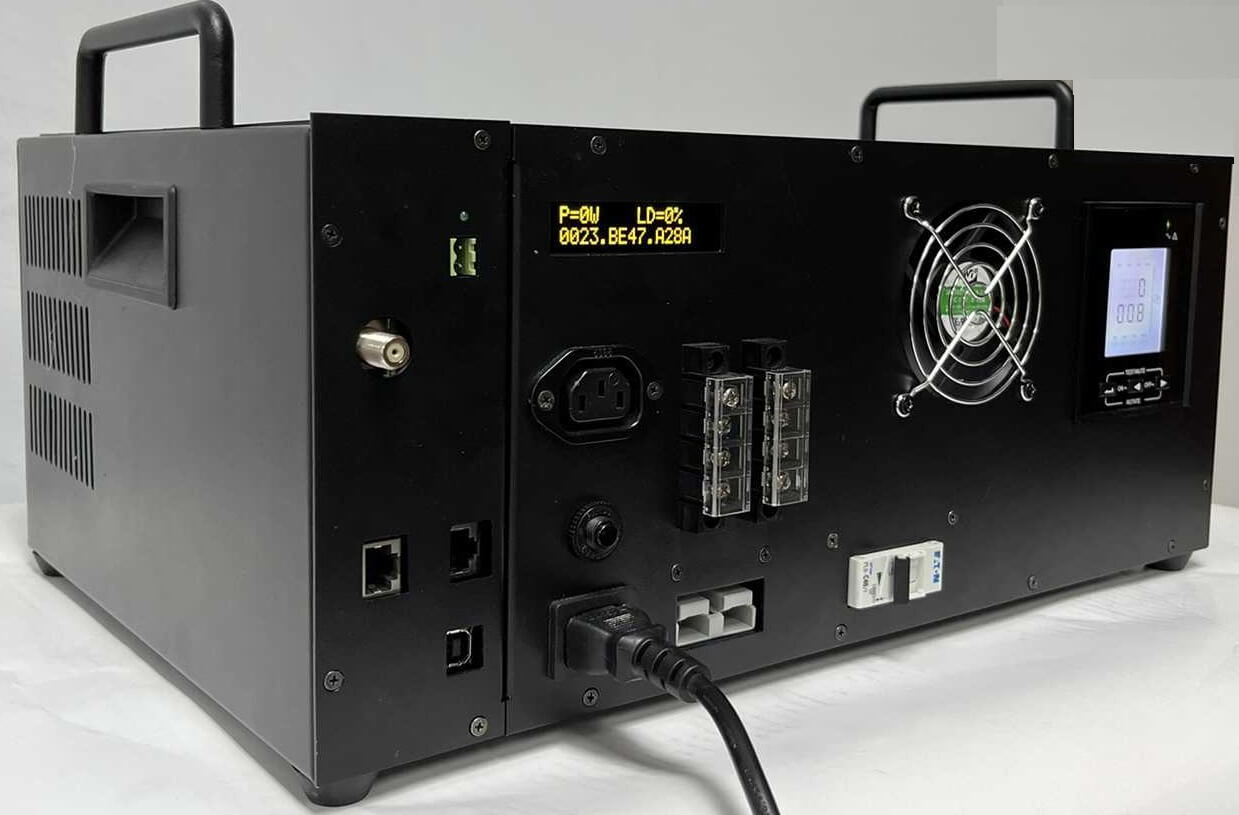

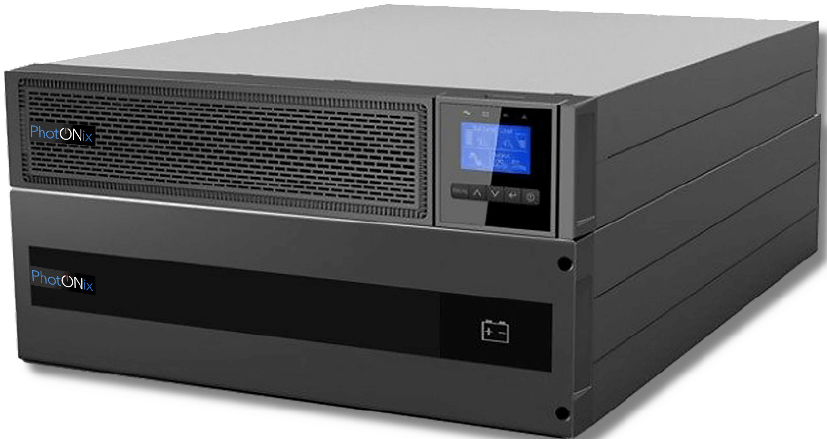

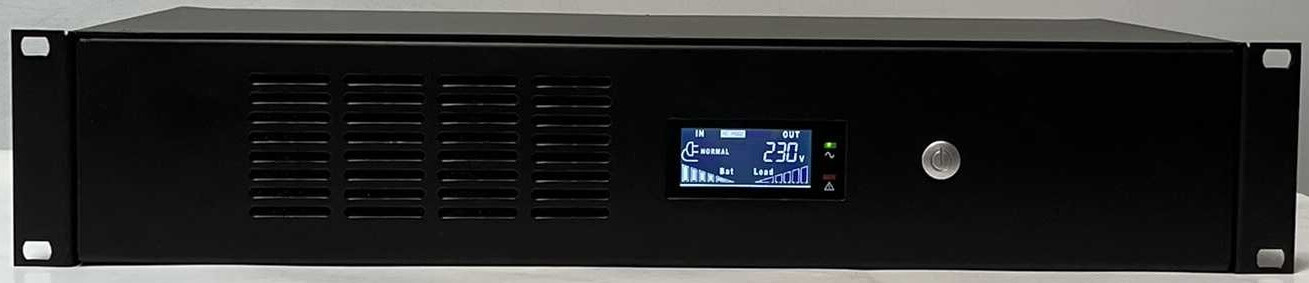

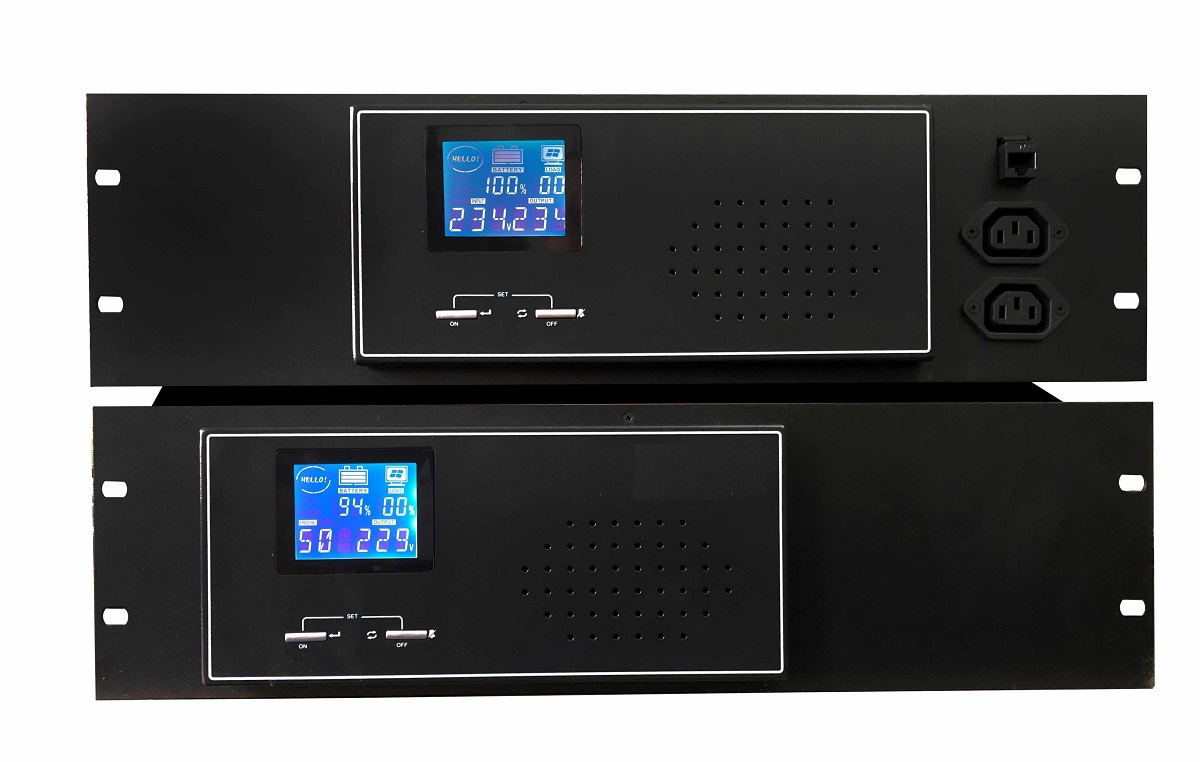

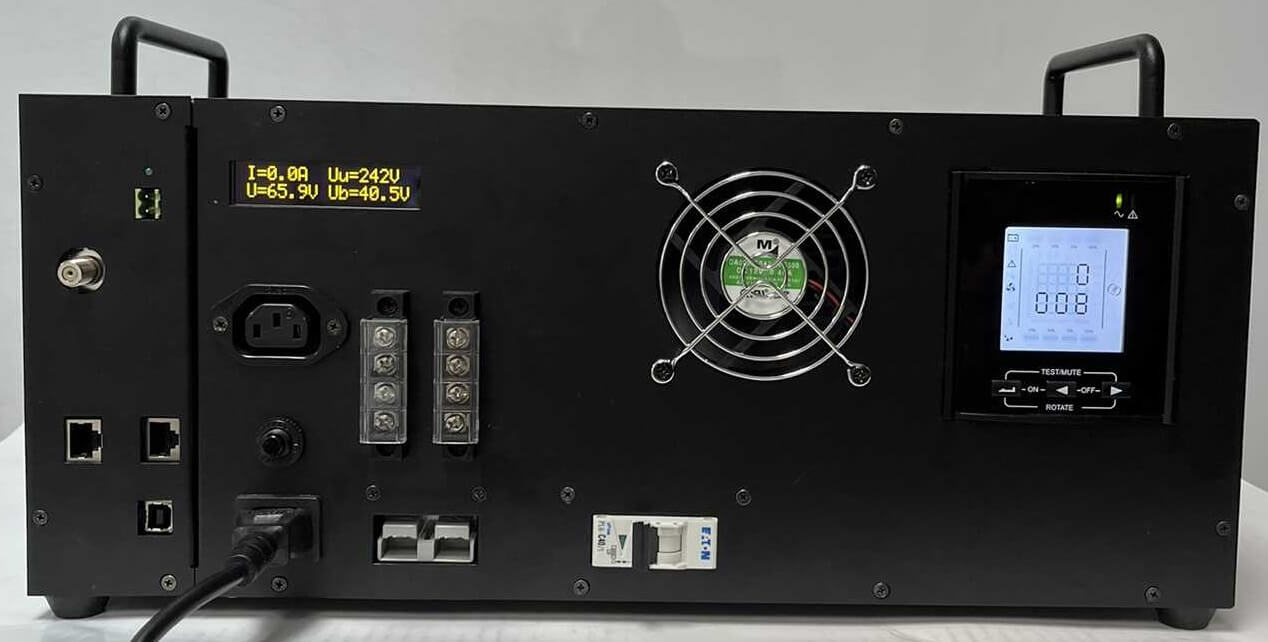

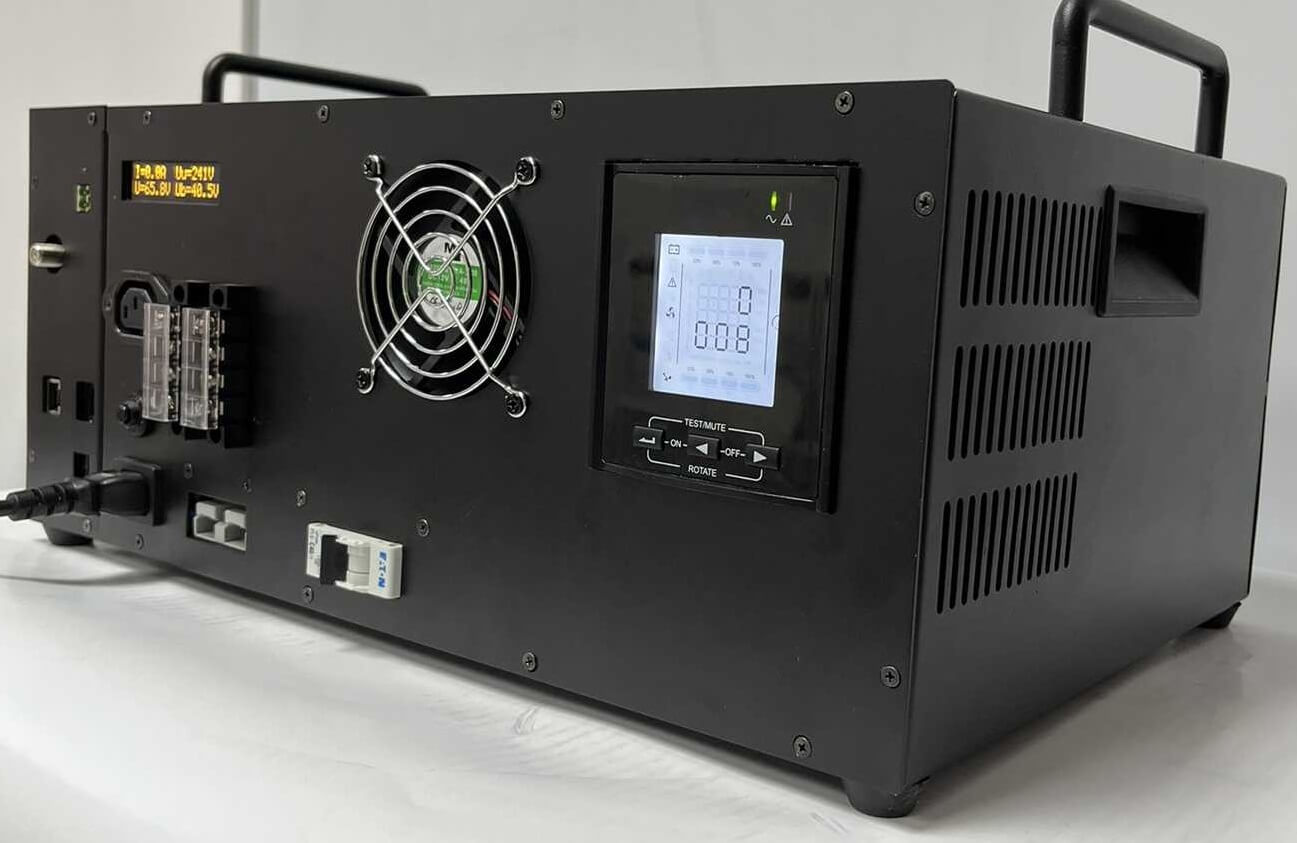

CATV SinUPS Series devices represent the product line of sinusoidal LI+ AVR class ( OnLine VFI class on request) UPSs of high perfomances, quality and reliability in operation. UPS is powered from the electric grid or generator set by a single-phase voltage of 230Vac/50Hz, and at the outputs it generates a pure sinusoidal voltage of 48Vac, 65Vac, 75Vac, 85Vac or 95Vac (1000W < Pout < 2500W) according to the user’s choice. In the absence of power grid voltage, it automatically switches to battery operation mode. It has a powerful up to 50A battery charger and can serve loads up to 2500W. Battery pool may be based on 24VDC or 36VDC.

Special features such as the microprocessor programmable Electronic Fuse and Soft Start circuits of the latest technology provides absolute protection to loads from any mains or disturbances caused by electrical discharges on the field. It is ready to operate in extremely robust environments (dust, moisture, temperature range of -40~+60°C). CATV SinUPS Series is ideal for powering sensitive equipment of Cable TV/ IPTV operators, IoT / AoT / SCADA hubs, control facilities in railways, as well as for various other appliances

Features

– Single phase AC input power supply 220V/230V/240Vac @50Hz (selectable)
– Two different AC voltages on output: 230Vac and 65Vac@ 15A/ 20A/ 25A (or other AC value on request)
– Line interactive with AVR/ Boost/ Trim output voltage stabilization in use as standard class
– OnLine VFI double conversion class in use when high Vout(V) stabilisation needs (< +/-5% Vnom)
– DSP digital control technology with Thrue RMS measurements of all AC values
– Built-in 3-stage battery charger CC, CV, FLOAT for optimal battery charging process (24VDC or 36VDC)
– Automatic transfer between inverter power and incoming AC utility power (LI+AVR up to 5msec, VFI 0ms)
– Charging current 50A max, settable charge current and charge voltage on front panel
– Precise adjustment of the battery charging current using the LCD Menu and push buttons interface
– Wide input voltage range of operation from 156V to 294V without switching to battery (in LI+AVR class)
– Output Wave Form: Pure Sine Wave

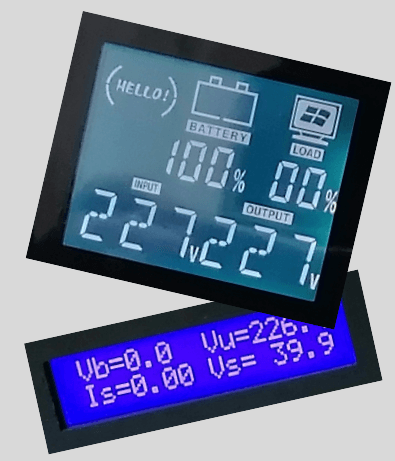

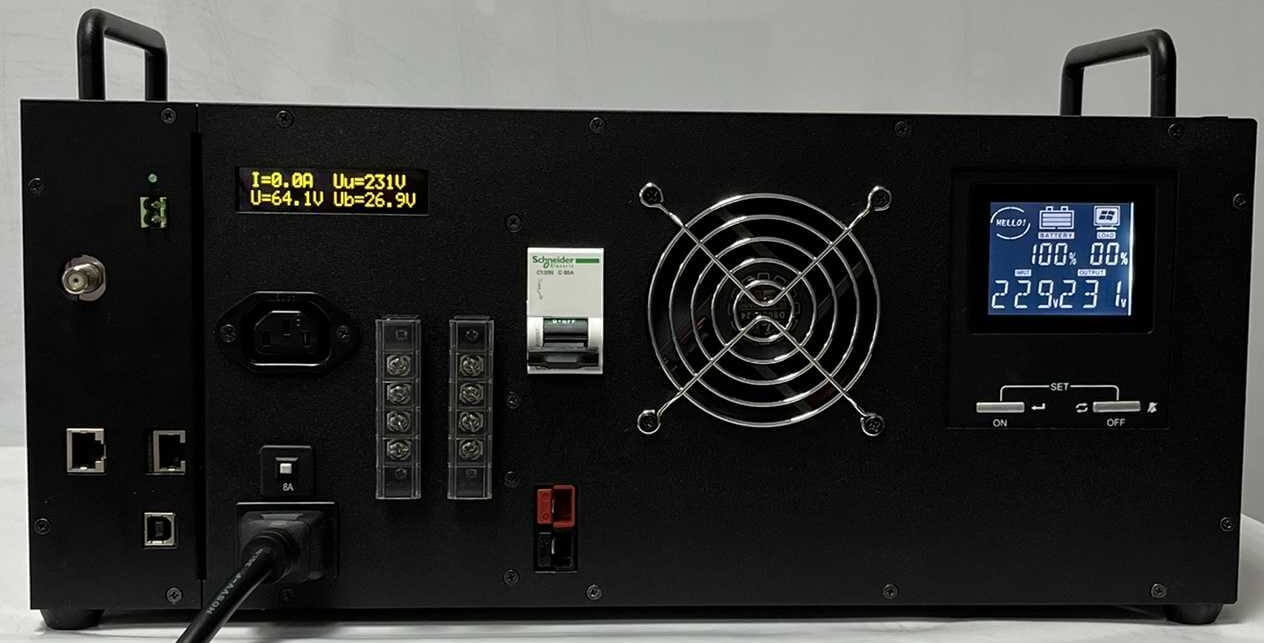

– Two LCDs showing power, fault, eFUSE, Thrue RMS values and BAT Charging status
– Two multi-function buttons on the front for setting parameters
– eFUSE full protection including short-circuit, over-voltage/ current, under-voltage, reverse polarity, over-T
– Suitable for all kinds of loads, such as resistive, inductive, and rectified loads and motors
– Compatible with Diesel El. generators, matching of inverter and generator is settable
– Intelligent long backup time up to 10 hours (based on battery bank and loads)
– Option to start work without batteries (Cold Start)
– Soft Start ciricuit for Mains El. installation protection against initial high current kick-backs and spikes
– Cooling: thermal fan, speed control depending on load
– Audible buzzer indicating faults, overload, and status

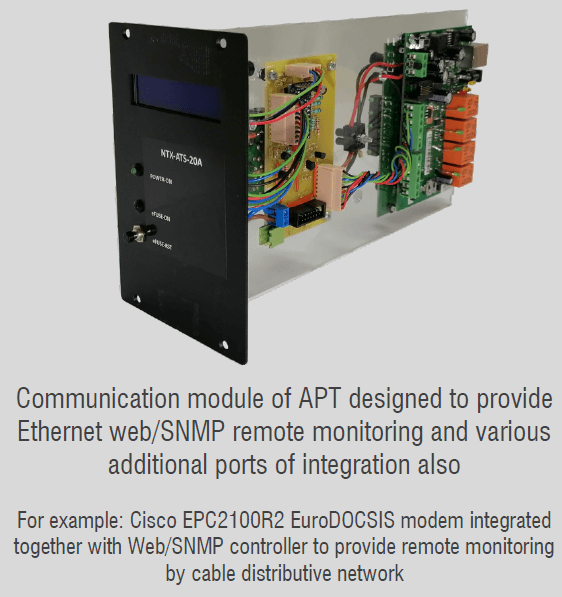

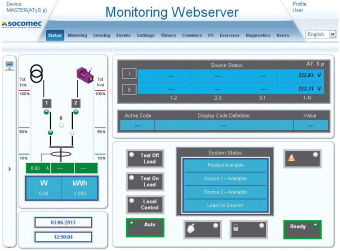

– Ethernet and EuroDOCSIS communication, IP Web/SNMP supported monitoring and controll
– Low RF emissions, protected from moisture and dust, extended temperature range of -40~+60°C
– OUTDOOR UPS Chassis model with CPU controlled Heater/Fan unit for rugged temperature deployment
– MTBF > 500000h@25°C
– CE / FCC / RoHS approved
